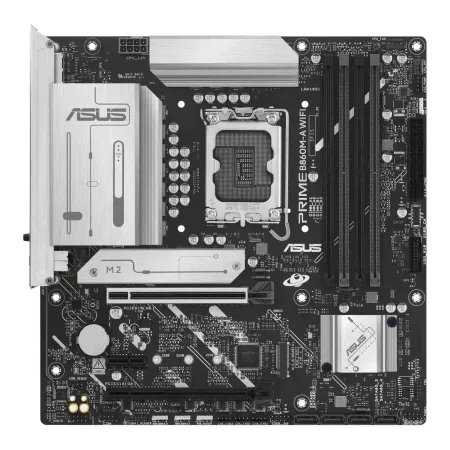

Płyta Asus PRIME B860M-A WIFI /B860/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/s.1851/M-ATX

Opis ogólny: Płyta Asus PRIME B860M-A WIFI
Cechy: PRIME B860M-A WIFI,ATX
Informacje dodatkowe: Operating System: Windows 11 (22H2 & later)
Wyposażenie dodatkowe: 2 x SATA 6Gb/s cables 1 x ASUS WiFi Q-Antenna 1 x Cable ties package 1 x M.2 Q-Latch package 1 x M.2 Q-Slide package 1 x ROG key chain 1 x ROG Strix stickers 1 x Quick start guide
Wymiary [S x W] (mm): 305 x 244
Port LAN: 1x 2,5 Gigabit LAN Intel®
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz with DSC as specified in DisplayPort 1.4a Supports 4K@60Hz as specified in HDMI 2.1 In ThunderboltTM 4 mode, supports up to 8K@60Hz x1 with DSC or 4K@60Hz x 2, maximum total bandwidth up to 23.8Gbps or 16Gbps/16Gbps, for resolution support please check DisplayPort 2.1 specs. VGA resolution support depends on processors', or graphic cards', resolution While installing the operating system, please ensure that your monitor is connected to the HDMI port on the back I/O panel or to a discrete graphics
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS, WOL by PME, PXE
Gniazda USB na płycie głównej: 2x USB 2.0 (3 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.2 Type-C (1 port)
Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu 2x Audio Jack Wyjście optyczne S/PDIF
Gniazda karty graficznej: HDMI DisplayPort Thunderbolt™ 4
Inne porty i gniazda: 4-pin CPU Fan header 4-pin CPU OPT Fan header 4-pin AIO Pump header 4x 4-pin Chassis Fan headers 3x Addressable Gen 2 header Chassis intrusion header Start button 10-1 pin System Panel header Thermal Sensor header Clear CMOS button(s) Wi-Fi module with an antenna connector
Porty USB na panelu tylnym: 6x USB 3.0 + 1x USB 3.1 + 1x USB 3.2 Type-C + 1x Thunderbot 4
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 110 dB SNR recording in Supports up to 32-Bit/384 kHz playback on front panel SupremeFX Shielding Technology Savitech SV3H712 AMP Premium audio capacitors- Audio cover A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output The LINE OUT port on the rear panel does not support spatial audio
Uwagi do karty sieciowej: ASUS LANGuard
Uwagi do kontrolera SATA: Intel® Core™ Ultra Processors(series 2): - M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) Intel® B860 Chipset: - M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode) - M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* - 4 x SATA 6Gb/s ports M.2_4 slot shares bandwidth with PCIEX16(G4). When M.2_4 is occupied with SSD device, PCIEX16(G4) will be disabled Intel Rapid Storage Technology supports SATA RAID 0/1/5/10
Uwagi do pamięci RAM: Support up to 9066MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) DIMM Fit
Uwagi do procesora: Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Uwagi do złącz PCI: Intel Core Ultra Processors (series 2) - 1 x PCIe 5.0 x16 slot (supports x16 mode) Intel® B860 Chipset: - 1 x PCIe 4.0 x16 slot (supports x4 mode) To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported pe
Zintegrowana karta dźwiękowa: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 4x M.2
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E For Windows 10, please note that no driver is available Wi-Fi 6GHz frequency band and bandwidth regulatory may vary between countr. The Bluetooth version may vary
