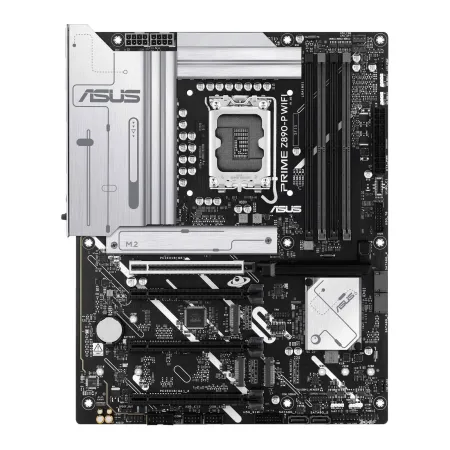

Płyta Asus PRIME Z890-P WIFI /Z890/DDR5/SATA3/M.2/USB4/WiFi/BT/PCIe5.0/s.1851/ATX

Opis ogólny: Płyta Asus PRIME Z890-P WIFI
Cechy: Z890-P
Informacje dodatkowe: Operating System: Windows 11, Windows 10 64-bit !!!!!! ZWERYFIKOWAĆ OPIS !!!!!!!
Wymiary [S x W] (mm): 305 x 244
Port LAN: 1x 2,5 Gigabit LAN Realtek® 1x 10 Gigabit LAN Marvell® AQtion
Uwagi do karty graficznej: Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates. Supports max. 8K@60Hz with DSC as specified in HDMI 2.1. Supports up to 1 x 8K@60HZ(DSC mode)+2 x 4K@60HZ monitors, It is recommend to chain-connect the monitors using a verified Thunderbolt™ cable For resolution support please check DisplayPort 2.1 specs.bandwidth limited by DisplayPort™ 2.1 with up to 77.4 Gbit/s VGA resolution support depends on processors', or graphic cards', resolution
BIOS: 256 Mb Flash ROM, UEFI AMI BIOS
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 2x USB 3.0 (4 porty) + 1x USB 3.1 Type-C (1 port)+ 1x USB 3.2 Type-C (1 port)
Gniazda karty dźwiękowej: Wyjście optyczne S/PDIF
Gniazda karty graficznej: HDMI 2x Thunderbolt
Inne porty i gniazda: 4-pin CPU Fan header 4-pin CPU OPT Fan header 4-pin AIO Pump header 4x 4-pin Chassis Fan headers 3x Addressable Gen 2 header Clear CMOS button(s) SPI TPM header (14-1pin) 10-1 pin System Panel header
Porty USB na panelu tylnym: 5x USB 3.1 + 2x USB 3.1 Type-C + 1x USB 3.2 Type-C + 2x Thunderbolt 5 Type-C
Uwagi do karty dźwiękowej: Impedance sense for front and rear headphone outputs Supports: Jack-detection, Multi-streaming, Front Panel MIC Jack-retasking High quality 120 dB SNR stereo playback output and 10 dB SNR recording in Supports up to 32-Bit/384 kHz playback on front panel Dedicated audio PCB layers SupremeFX Shielding Technology ESS ES9219 QUAD DAC LED-illuminated audio jacks Rear optical S/PDIF out port Premium audio capacitors
Uwagi do karty sieciowej: ASUS LANGuard
Uwagi do kontrolera SATA: Support Intel® Core™ Ultra Processors(series 2): - M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) - M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) - M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 modes - M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 modes)** Intel® Z890 Chipset: - DIMM.2_1 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) - DIMM.2_2 slot (Key M) via ROG Q-DIMM.2, type 2230/2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1 SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5 M.2_3 & M.2_4 share bandwidth with PCIEX16(G5)_2 When M.2_3 is enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will run x4. When M.2_3 & M.2_4 are enabled, PCIEX16(G5)_1 will run x8 & PCIEX16(G5)_2 will disabled
Uwagi do pamięci RAM: Support up to 8400+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM Supports Intel® Extreme Memory Profile (XMP) memory module ASUS Enhanced Memory Profile III (AEMP III) Supports DIMM Flex, Supports DIMM Fit, NitroPath DRAM Technology
Uwagi do procesora: Support Intel Core Ultra Processors(series 2) Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max 3.0 Refer to https://www.asus.com/support/download-center/ for CPU support list Intel Turbo Boost Max Technology 3.0 support depends on the CPU types
Uwagi do złącz PCI: Intel® Core™ Ultra Processors(series 2): - 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 or x8/x4/x4 modes)** Intel® Z890 Chipset: - 1 x PCIe 4.0x4 slot
Zintegrowana karta dźwiękowa: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082
Zintegrowany kontroler SATA: Chipset+CPU: 4x SATA III 6Gb/s + 6x M.2
Uwagi do WiFi / BT: 2x2 Wi-Fi 7 (802.11be) Supports 2.4/5/6GHz frequency band Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate. Wi-Fi features may vary depending on the operating system For Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E For Windows 10, only Wi-Fi 6 is supported
