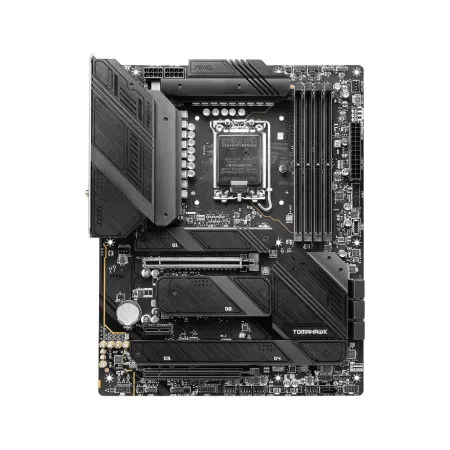

Płyta MSI MAG Z790 TOMAHAWK WIFI /Z790/DDR5/SATA3/M.2/USB3.2/WiFi/BT/PCIe5.0/s.1700/ATX

Opis ogólny: Płyta MSI MAG Z790 TOMAHAWK WIFI
Cechy: MAG Z790 TOMAHAWK WIFI,ATX
Informacje dodatkowe: Support for Windows® 11 64-bit, Windows® 10 64-bit Support TPM 2.0
Wyposażenie dodatkowe: 2x SATA Cable, EZ M.2 Clip Packages, USB Drive, Cable Sticker Wi-Fi Antenna, Quick Installation Guide, European Union Regulatory Notice
Wymiary [S x W] (mm): 304,8 x 243,84
Port LAN: 1x 2,5 Gigabit LAN Intel®
Uwagi do karty graficznej: Support HDMI™ 2.1, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Gniazda karty dźwiękowej: 5x Audio Jack Wyjście optyczne S/PDIF Wewnętrzne gniazdo audio przedniego panelu
Gniazda karty graficznej: HDMI DisplayPort
Inne porty i gniazda: CPU Fan Pump Fan 6x System Fan 2x Front Panel Złącze czujnika otwarcia obudowy TBT connector Tuning Controller Connector 3x Addressable V2 RGB LED connector RGB LED connector Gniazdo modułu TPM 4x EZ Debug LED 2x Antenna Ports Przycisk Clear CMOS na panelu tylnym Przycisk Flash BIOS na panelu tylnym
Porty USB na panelu tylnym: 4x USB 3.0 + 4x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C
Uwagi do karty dźwiękowej: Supports up to 32-Bit/384 kHz playback on front panel
Uwagi do kontrolera SATA: M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 supports 22110/2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode supports 2280/2260/2242 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 supports 2280/2260/2242 devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices Supports RAID 0, RAID 1, RAID 5 and RAID 10 for M.2 NVMe storage devices SATA_A1~A2 do not support RAID function
Uwagi do pamięci RAM: Max. overclocking frequency: - 1DPC 1R Max speed up to 7200+ MHz - 1DPC 2R Max speed up to 6600+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MH Supports Intel® XMP3.0 OC Supports non-ECC, un-buffered memory
Uwagi do złącz PCI: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Zintegrowana karta dźwiękowa: Realtek® ALC4080 8-Channel High Definition Audio CODEC
Zintegrowany kontroler SATA: Chipset+CPU: 7x SATA III 6Gb/s + RAID 0,1,5,10 + 4x M.2 + RAID 0,1,5,10
Uwagi do WiFi / BT: Intel® Wi-Fi 6E The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps Supports Bluetooth® 5.3, FIPS, FISMA Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11 Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11
