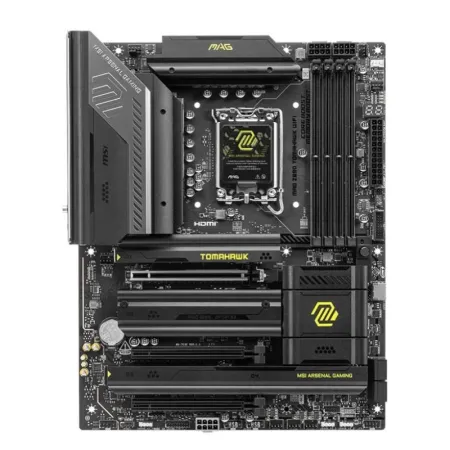

Płyta MSI MAG Z890 TOMAHAWK WIFI /Z890/DDR5/SATA3/M.2/TB4/WiFi/BT/PCIe5.0/s.1851/ATX

Opis ogólny: Płyta MSI MAG Z890 TOMAHAWK WIFI
Cechy: PRO Z890-S WIFI
Informacje dodatkowe: !!!!!! SZKIELET !!!!!!
Port LAN: 1x 2,5 Gigabit LAN Intel®
Uwagi do karty graficznej: Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz Support DP 1.4, maximum resolution of 8K 60Hz Available only on processors featuring integrated graphics Graphics specifications may vary depending on the CPU installed
Gniazda USB na płycie głównej: 2x USB 2.0 (4 porty) + 1x USB 3.0 (2 porty) + 1x USB 3.1 Type-C (1 port)
Gniazda karty dźwiękowej: Wewnętrzne gniazdo audio przedniego panelu 5x Audio Jack Wyjście optyczne S/PDIF
Gniazda karty graficznej: HDMI DisplayPort
Inne porty i gniazda: CPU Fan Pump Fan 6x System Fan 2x Front Panel Złącze czujnika otwarcia obudowy Tuning Controller Connector 3x Addressable V2 RGB LED connector RGB LED connector Gniazdo modułu TPM ARGB+FAN Header Przycisk Clear CMOS na panelu tylnym
Porty USB na panelu tylnym: 4x USB 3.0 + 4x USB 3.1 + 1x USB 3.1 Type-C + 1x USB 3.2 Type-C
Uwagi do karty dźwiękowej: Supports up to 32-Bit/384 kHz playback on front panel
Uwagi do kontrolera SATA: - M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280/ 2260 devices - M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/ 2260 devices - M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode supports 2280/2260/2242 devices - M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/ 2260/2242 devices - M.2_5 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/ 2260 devices PCI_E1 slot will be Gen5x8 when installing M.2 SSD in the M2_1 slot SATA_1 & SATA_2will be unavailable when installing M.2 SATA SSD in the M2_3 slot
Uwagi do pamięci RAM: Max. overclocking frequency: - 1DPC 1R Max speed up to 7800+ MHz - 1DPC 2R Max speed up to 6600+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory
Uwagi do złącz PCI: PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
Zintegrowana karta dźwiękowa: Realtek® ALC4080 8-Channel High Definition Audio CODEC
Zintegrowany kontroler SATA: Chipset+CPU: 8x SATA III 6Gb/s - RAID 0,1,5,10 + 5x M.2 - RAID 0,1,5,10
Uwagi do WiFi / BT: Wi-Fi 7 Solution The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ be Supports Bluetooth® 5.4**, MLO, 4KQAM 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3 The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor',s website for details. Bluetooth 5.4 support schedule depends on Windows 11 plan
